JSF implicit navigation rule

An action can directly return a string or can call a managed bean method which returns a string. JSF implicit navigation when action directly returns a string.

Example explanation:

When “Say Hello” button is clicked it returns the “welcome” string. JSF framework embed the .xhtml at the end of the return string and display the welcome.xhtml page.

Example:

test.xhtml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:h="http://java.sun.com/jsf/html"
	xmlns:f="http://java.sun.com/jsf/core"
	xmlns:ui="http://java.sun.com/jsf/facelets">
    <h:head>
	<title>JSF implicit navigation example.</title>
    </h:head>
    <h:body>
      <h3>JSF implicit navigation example.</h3>
      <h:form>
         <h:commandButton value="Say Hello" action="welcome"/>
      </h:form>
    </h:body>

</html>

faces-config.xml

<?xml version="1.0" encoding="windows-1252"?>
<faces-config version="2.0"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xi="http://www.w3.org/2001/XInclude"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-facesconfig_2_0.xsd">

</faces-config>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0"
    	xmlns="http://java.sun.com/xml/ns/javaee"
    	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    	http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

    <servlet>
        <servlet-name>faces</servlet-name>
        <servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
    </servlet>

    <servlet-mapping>
        <servlet-name>faces</servlet-name>
        <url-pattern>/faces/*</url-pattern>
    </servlet-mapping>

</web-app>

welcome.xhtml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml"
	xmlns:h="http://java.sun.com/jsf/html"
	xmlns:f="http://java.sun.com/jsf/core"
	xmlns:ui="http://java.sun.com/jsf/facelets">
     <h:head>
	<title>JSF implicit navigation example.</title>
    </h:head>
    <h:body>
      <h3>JSF implicit navigation example.</h3>
      <h3>Hello World.</h3>
    </h:body>

</html>

URL:

http://localhost:7001/JSFExample25/faces/test.xhtml

Output:

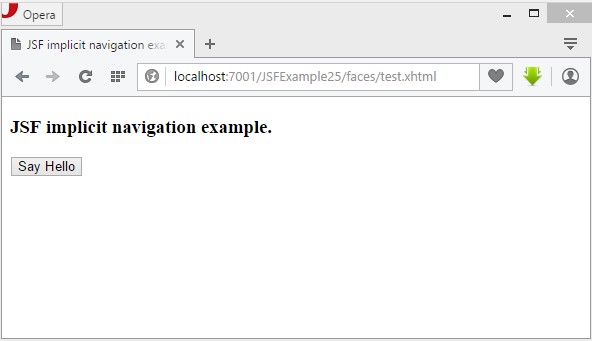

JSF example25-1 Click on “Say Hello” button. JSF example25-2 Download this example.
